IC-driven Florescent Tube

IC-driven Florescent Tube

Category:

tube2

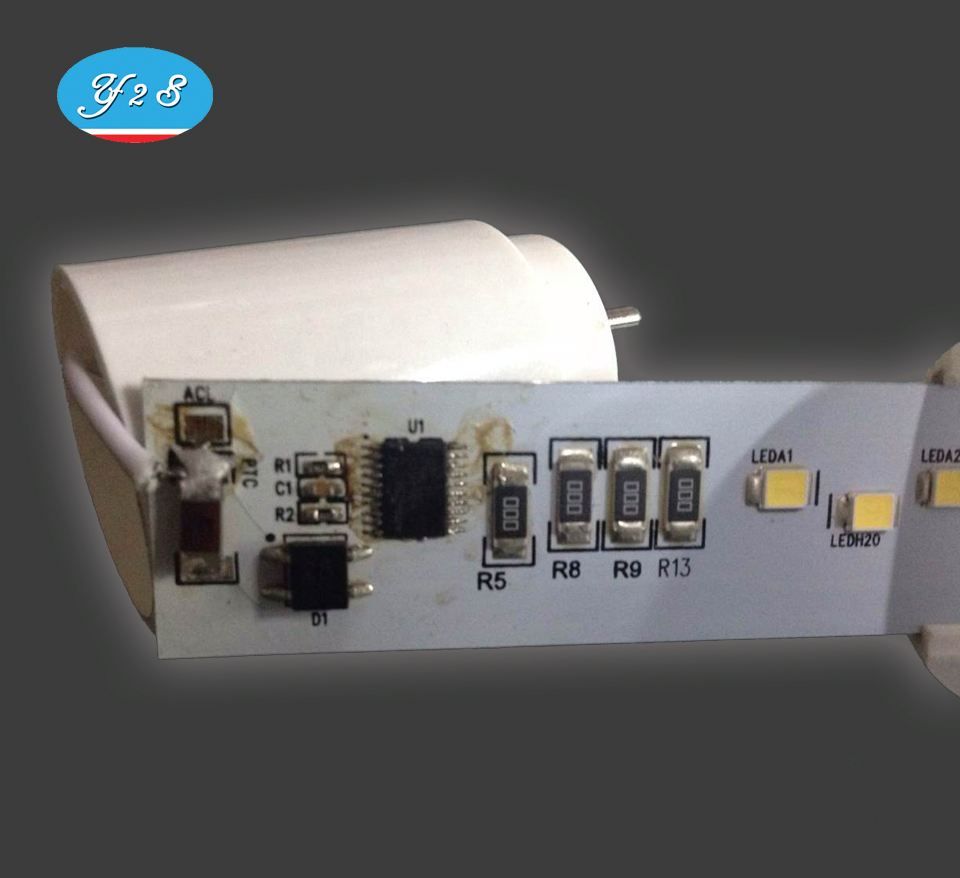

The LED T8 series of IC-driven Florescent Tube differs from traditional light tube. It uses an advanced technology that the integrated circuits are ignited from the LED to the IC drivers:

Its advantages are as follows:

  • Simplified external circuits with enhanced safety
  • Free from traditional driver that can lower the power consumption and enhance the tube’s life span
  • Strong resistance to electromagnetic interference
  • Intelligent power-on with lowered electric current impact
  • A wide range of safety fuse from 180 – 350 Voltage and -40 – 80°
  • Improved safety by the small size of IC Power sources
  • Adjustable brightness
Model Power Lumen Size
ICF-8 8W 600lm Φ 28x600mm
ICF-12 12W 850lm Φ 28x900mm
ICF-18 18W 1400lm Φ 28x1200mm
ICF-25 25W 2150lm Φ 28x1500mm

Main Technical Data

Chip Model Materials Voltage Power Factor
SAMSUNG 5630 Plastic AC99V-132V
AC198V-264V		 ≥0.97



Frequency CRI Color Warranty Safety Standard
50-60Hz Ra: 80 3000K. 4500K. 7500K 1 Year RoHS

Note: The lumen for IC-driven florescent tube is affect by voltage and may have a variance of 5%-8%.

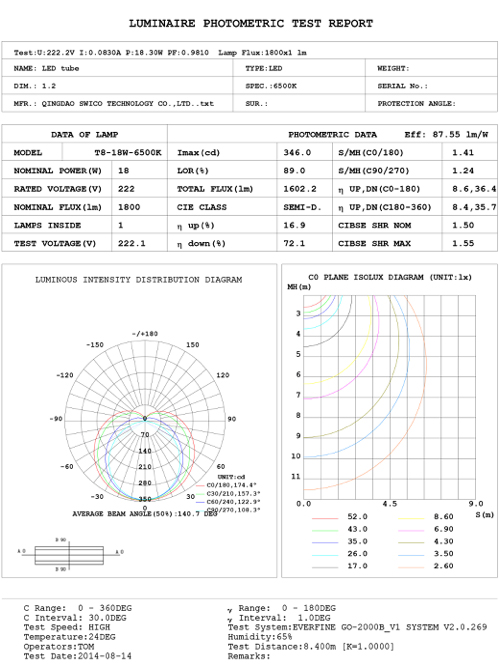

Test Report (1)

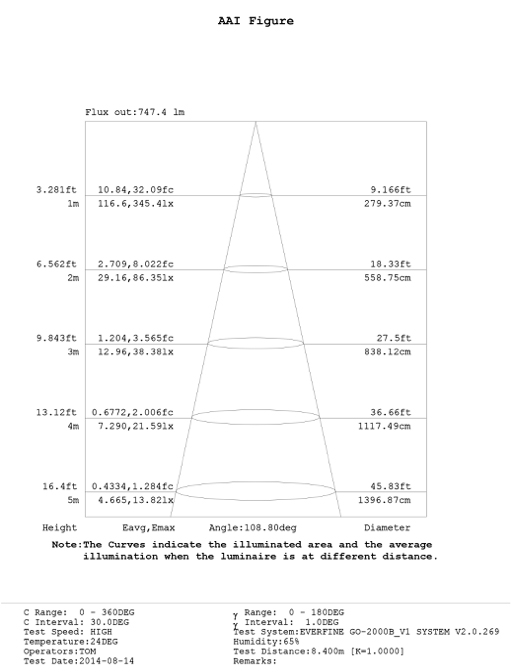

Test Report (2)

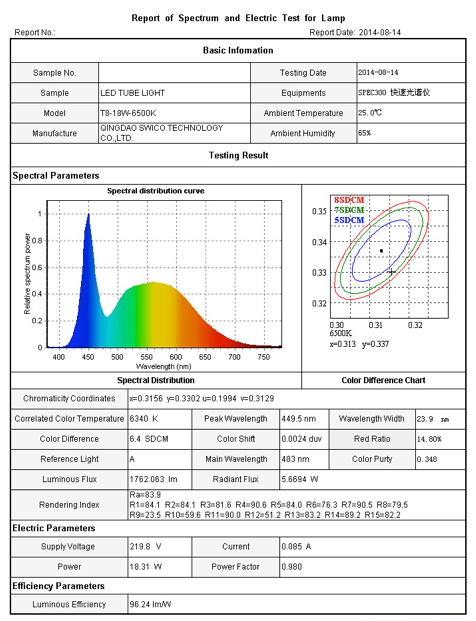

Test Report (3)
